Maximum PC's article on proper 5.1 Setup

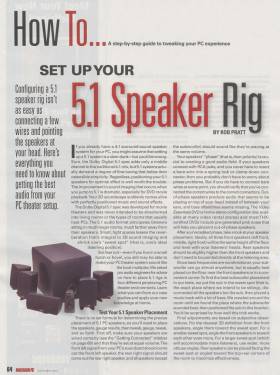

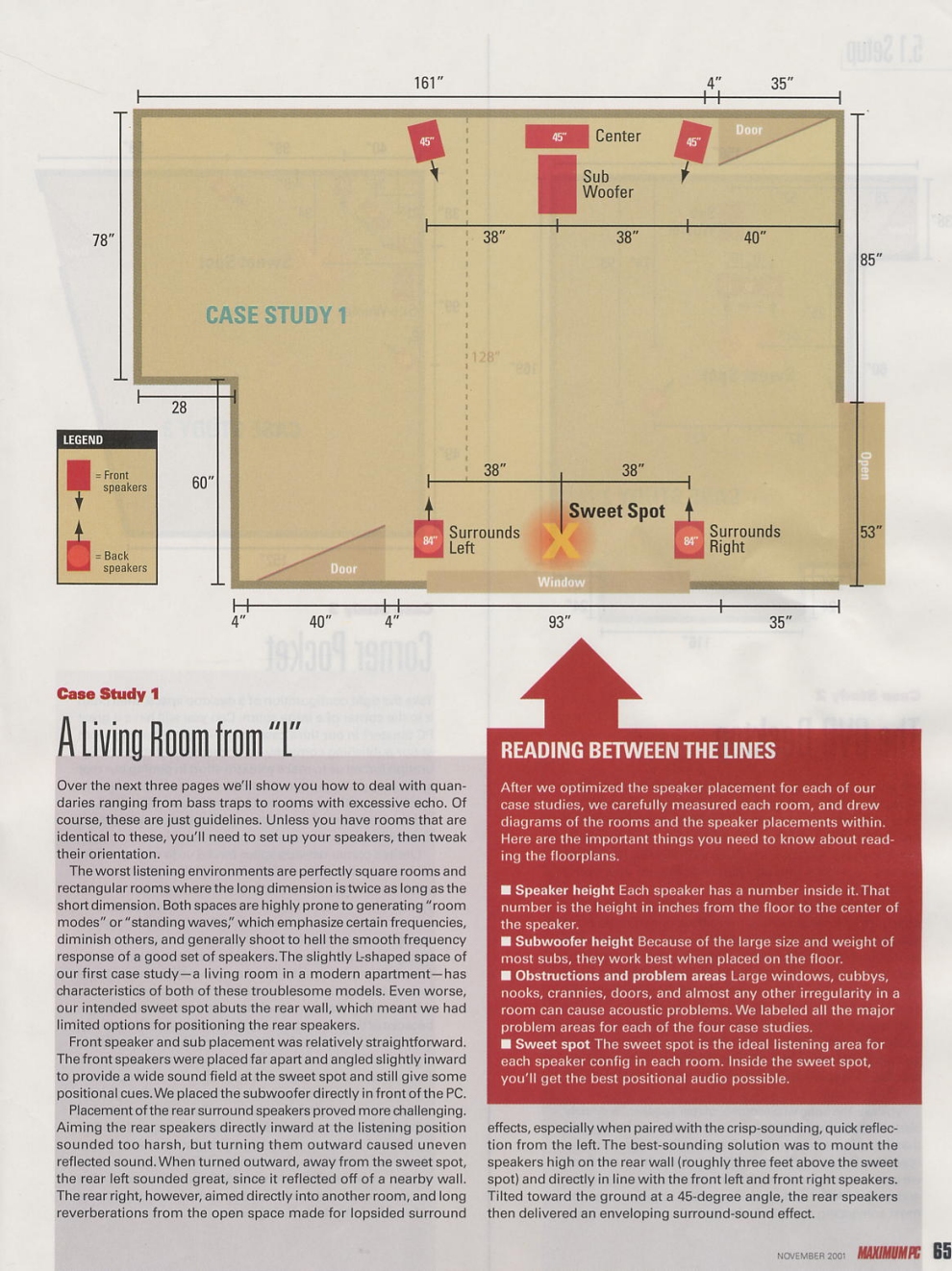

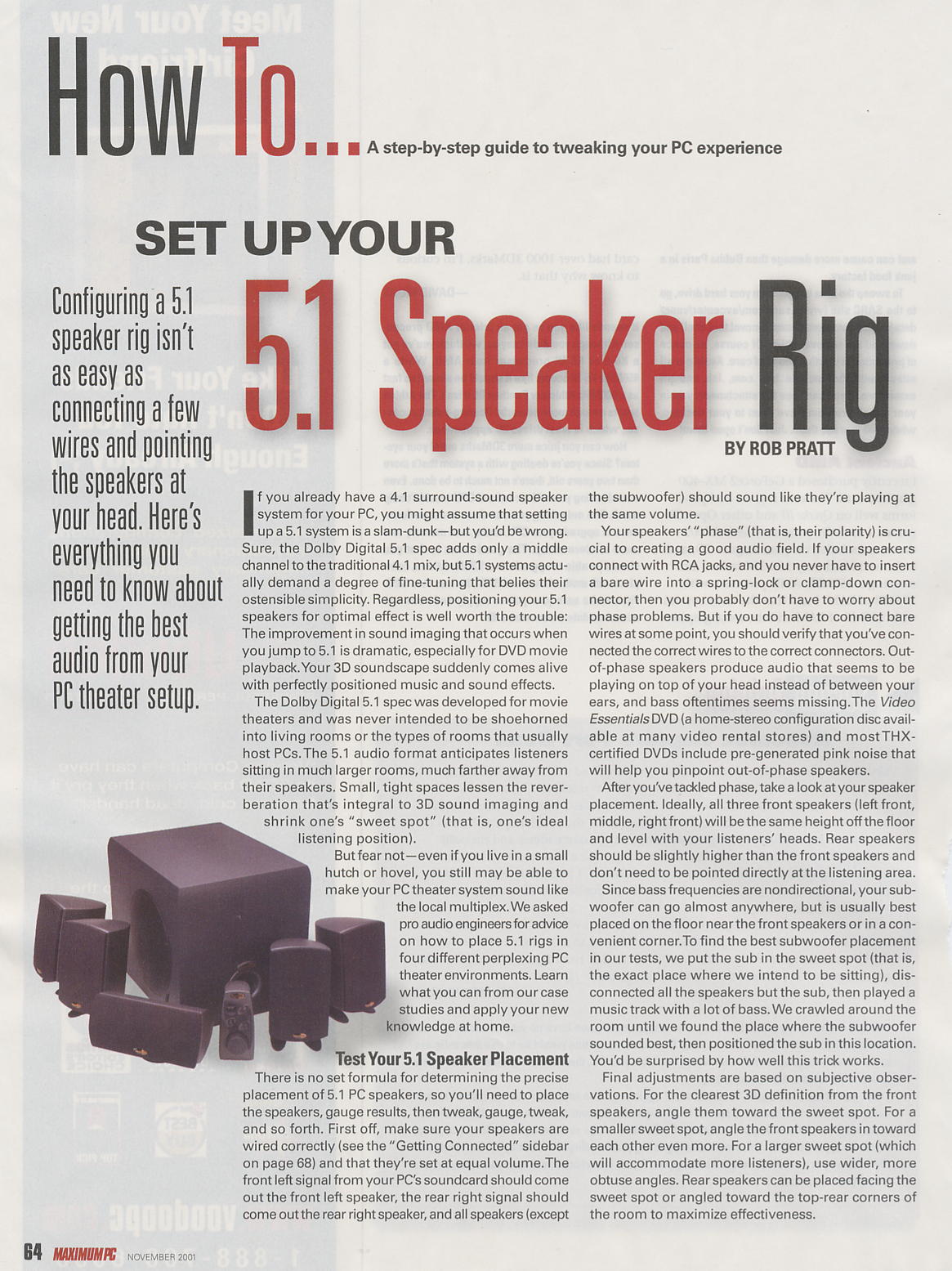

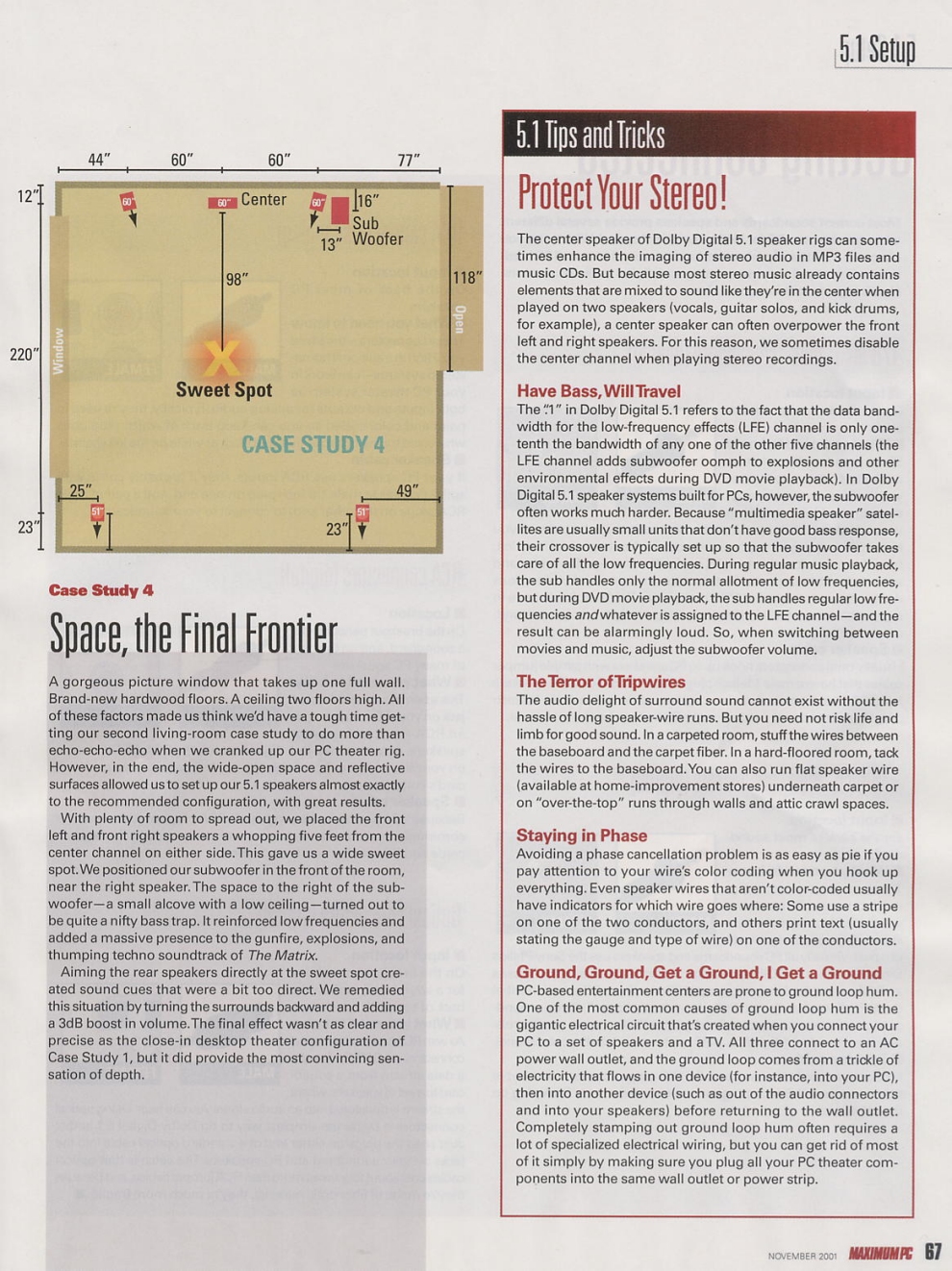

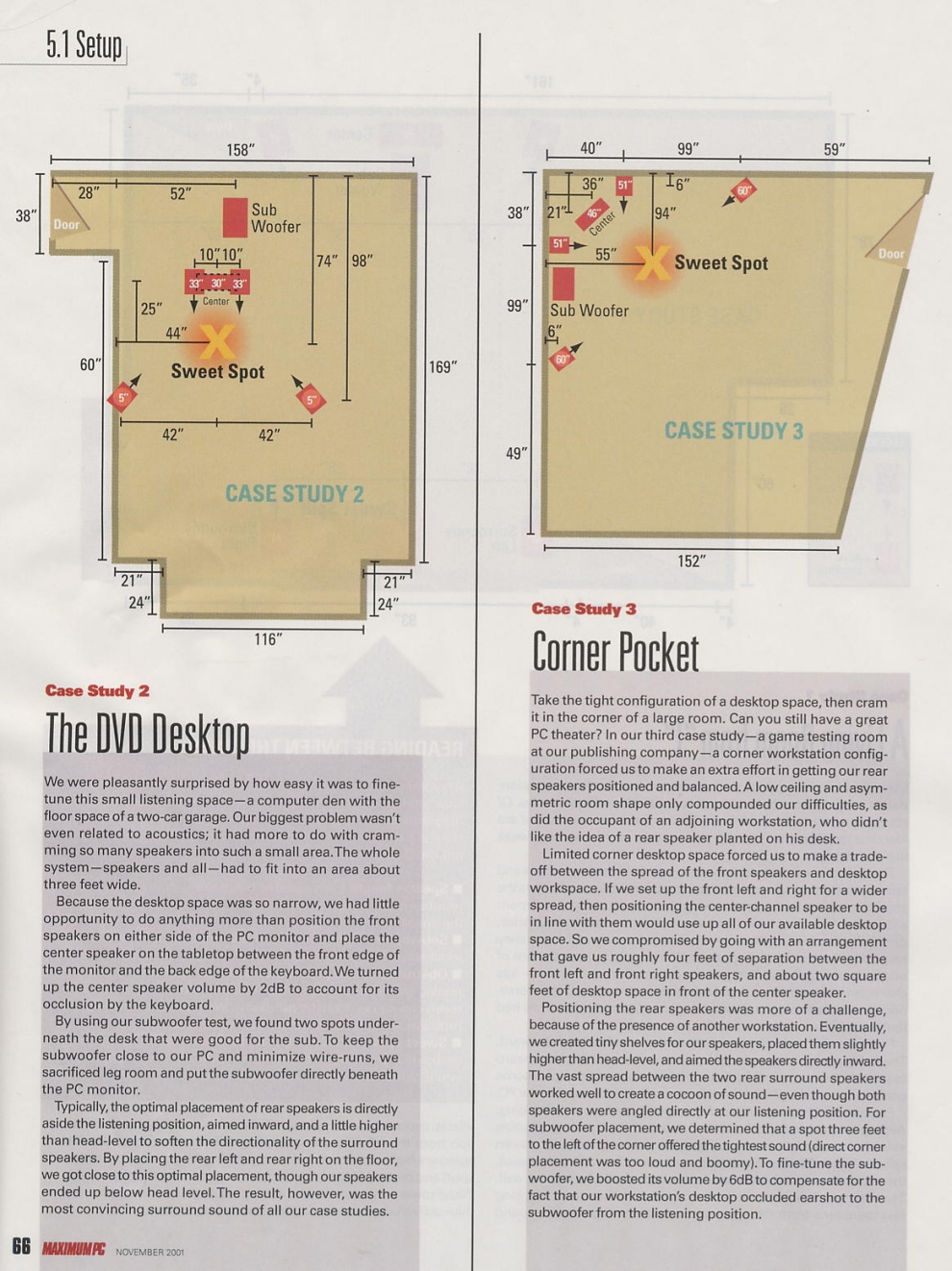

Here are the Maximum PC Speaker placement pics, actually the whole article.  This is not for any profit and I am sure this breaks some copyright laws but I am just trying to help some people out so don't hate me!  Click on them for the full size version.  You can go to the next picture by clicking on the subsequent page number under the Klipsch Tech Help title.  If you would like to go back to this screen then click on the Go Back text found on the left blue panel.  Enjoy!
